for... hand-made audio noise and random modules, electromagnetic investigation devices (scrying), BYRON the board (coming soon), books and recordings.

Note: All modules are supplied ready constructed (pre-built), fully tested and (where pictured) in a custom housing. Selected audio devices are available housed in a heavy duty brushed aluminium case with 1/4 inch jack output at an additional cost of 16 euros.

performance artefacts [new]

hd

../images/hdartefact.jpg

Single edition prepared hard drive 2010.

  • order

    90 euros + 6 euros postage:

noise

mega-noise_01 [new]

http://1010.co.uk/images/mega2.jpg

Very few bit granular re-sampling and audio processing of incoming audio signal using microcontroller and memory base (4 seconds), with large set of data generators (cellular automata, strange attractors, L-systems, NOW with BF interpreter), switching effects and analogue switched feedback. Delivered in tough, brushed aluminium case with all high quality controls and 9v battery (power supply socket optional extra).

A custom version is available with white noise generator and additional switch neurons for 285 euros (please enquire).

boneberger leberwurst white noise, two neuron distortion

http://1010.co.uk/images/boneberger.jpg

Small, portable extreme noise leberwurst unit. Avalanche transistor white noise through distortion feedback through two neurons and LED VACTROLL. High storm sound, very full grained noise.

fish tin sans computer sound

http://1010.co.uk/images/fish.png

Versatile, portable extreme noise instrument with good range from low bass rumble, dripped pulse to squealing radio white noise static. Housed in diverging fishtin case. No fish. All very unpredictable.

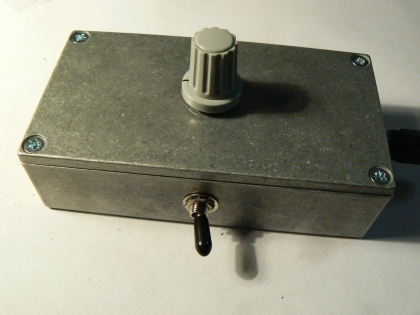

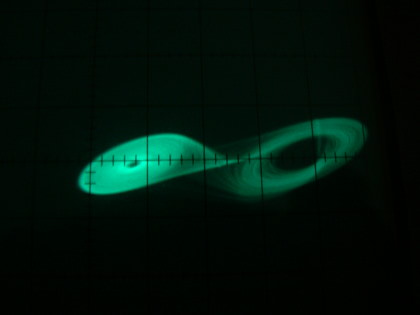

chua chaotic oscillator

http://1010.co.uk/images/chua1.jpg

Portable implementation (with coil) of Leon Chua's chaotic oscillator with a range from pure sine wave to chaos and bifurcation phenomena. This chaotic generator is particularly useful for control. In custom metal housing with switch, mono full-size jack and one potentiometer/knob for tuning into chaotic region.

Circuit: http://www.scholarpedia.org/article/Chua\_circuit

electromagnetic investigations// scrying

full scrying kit

../images/skry_gps1.jpg

An almost complete set of scrying modules[CPU, USB, RSSI, 2.4_spectrum, GPS (inc. antenna and all connectors)]. For further details please see:

http://1010.co.uk/org/scrying.html

  • order

    120 euros + 10 euros postage:

mini scrying kit

../images/micro_skry3.png

For long-term logging of wide band (100 MHz to 3 GHz) and narrow band (2.4 GHz alll wi-fi channels) signals to MicroSD card. Designed for low power operation (1 to 2 months on 2x AA batteries).

  • order

    42 euros + 6 euros postage:

high frequency schnuffler/sniffer

Broadband 100 MHz to 2.4 GHz radio receiver (amplitude demodulation - using only RSSI signal strength) - includes Wireless signal, using Analog devices AD8313. Broadband high frequency signals rendered audible and (to some degree) visible.

  • order

    42 euros + 6 euros postage:

VLF receiver/close range schnuffler/sniffer

http://1010.co.uk/images/sniff.jpg

VLF (Very Low Frequency) receiver for use with a small wire coil (included) as very close range EM (Electromagnetic) sniffer/audio. Very good, precise audio results.

  • order

    21 euros + 4 euros postage:

[new] VLF-2 natural radio receiver - ready constructed

New design for a ready constructed ELF/VLF natural radio receiver unit roughly based on the NASA INSPIRE VLF-3 receiver. Small unit in metal housing (without telescopic antenna) for listening and recording both natural and man-made ELF and VLF audio-frequency (between 300 Hz and 10 kHz) radio emissions. The unit has two mini-jack (3.5mm) plugs for both a recording device (mic level input) and headphones (with volume control), and a BNC socket for antenna connection (only). A (9v) battery is included. The device is only suitable for use away from power lines within the countryside or a large city park.

See: http://1010.co.uk/elf2.pdf

  • order

    72 euros + 6 euros postage:

BYRON (the board) [new]

../images/byron1.jpg

Byron is a flexible, low budget open hardware and free software platform for fast, multiple sensor input and control over USB. Byron differs from other solutions in terms of speed, simplicity and low cost. At the same time Byron is able to assume new identities, functioning one moment as a microcontroller programmer, the next as keyboard device. Byron is based on Objective Development's V-USB software.

byron

  • order

    20 euros + 4 euros postage:

random

hardware RNG [random number generator]

http://1010.co.uk/images/rng2.png

Generates random numbers based on a transistor avalanche white noise module with additional squaring up of wave, sampling with microcontroller (ATmega8), unbiasing and serial USB interface. Can be used with free software [/dev/random] as a hardware RNG for encryption, research and PK applications. The RNG performs well under many industry-standard tests examining random number distribution.

  • order

    63 euros + 4 euros postage:

recordings and publications

xxxxx_peenemünde publication

http://1010.co.uk/images/pmcover667.jpg

xxxxx_peenemünde presents documentation, archive material and original research resulting from the first series of working groups in Peenemünde conducted in early 2008. This speculative event, described in the work, was projected as an intense, conspiratorial expedition and meeting within a key, historical location. xxxxx_peenemünde actively examines a fiction which presents a dark heart of technology (as evidenced by electromagnetic practice), and a vivid relation to both entropy and ecology.

  • order

    19 euros + 6 euros postage:

[the] xxxxx [reader]

[the] xxxxx [reader] is a comprehensive anthology of world and life re-coding strategies, collecting background text, Lisp and Perl program listings, and screenshots. See: reader

  • order

    17 euros + 6 euros postage:

supplies [new]

Trimble Lassen SQ GPS modules [new]

../images/trimble.jpg

Low power, high performance GPS module, delivered with antenna and PCB connector. Working AVR code also published under the GPL license

  • order

    25 euros + 6 euros postage:

additional services

electronic hardware design and prototyping, design production of PCBs
